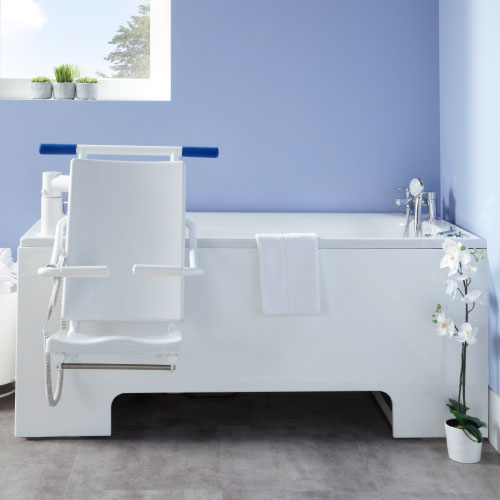

EXCEL 300 FIXED HEIGHT BATH WITH DETACHABLE POWERED SWING SEAT AND TRANSPORTER

In some situations, the ability to ready the bather in the bedroom and transfer them to the bathroom is beneficial. The detachable Seat with Transporter enables this to happen. Once in the bathroom the seat can be lifted off the Transporter, straight into the bath, without the need for further lifting/handling of the bather.

Transporter
Once the seat has been lowered onto the transporter the person can be moved away to another room with ease.

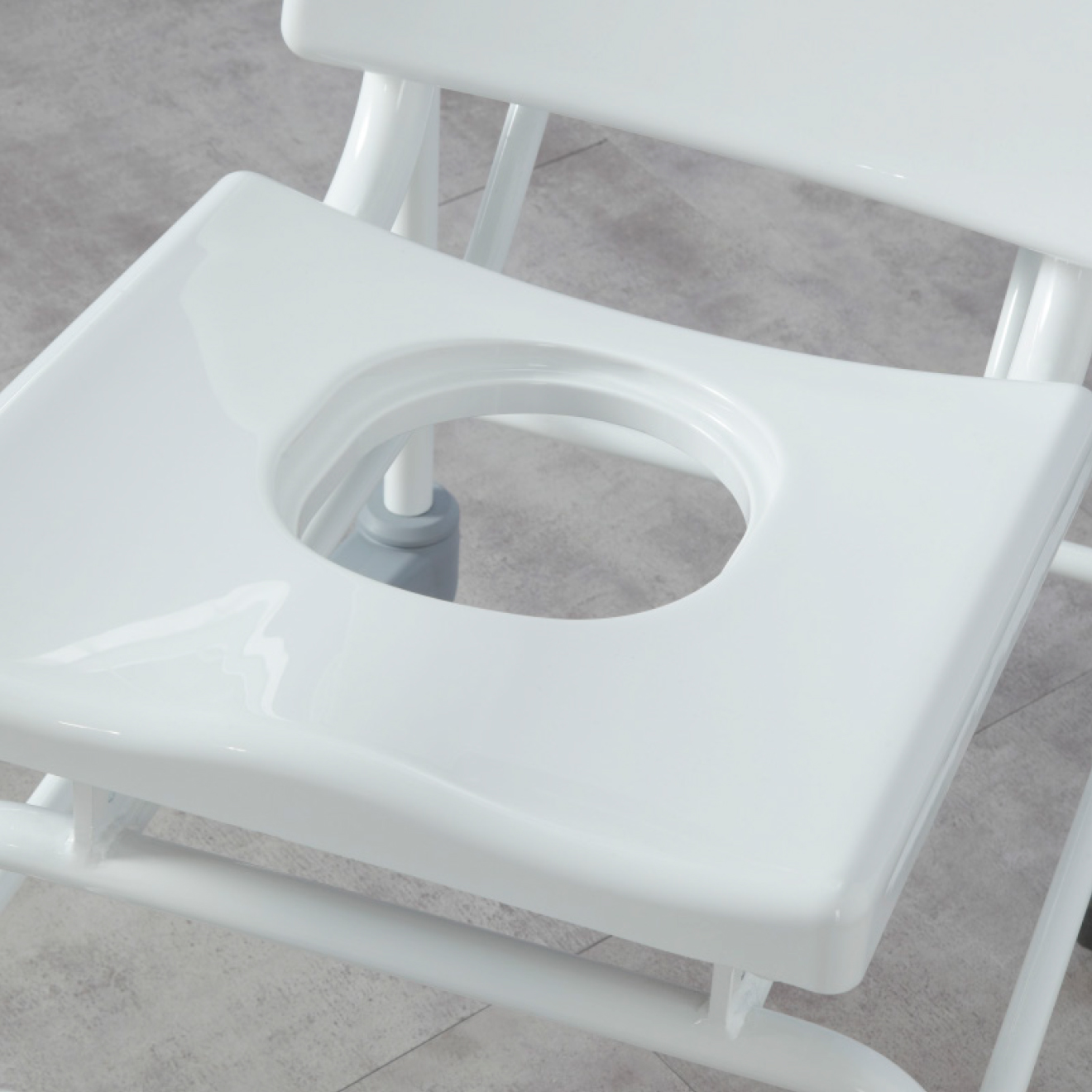

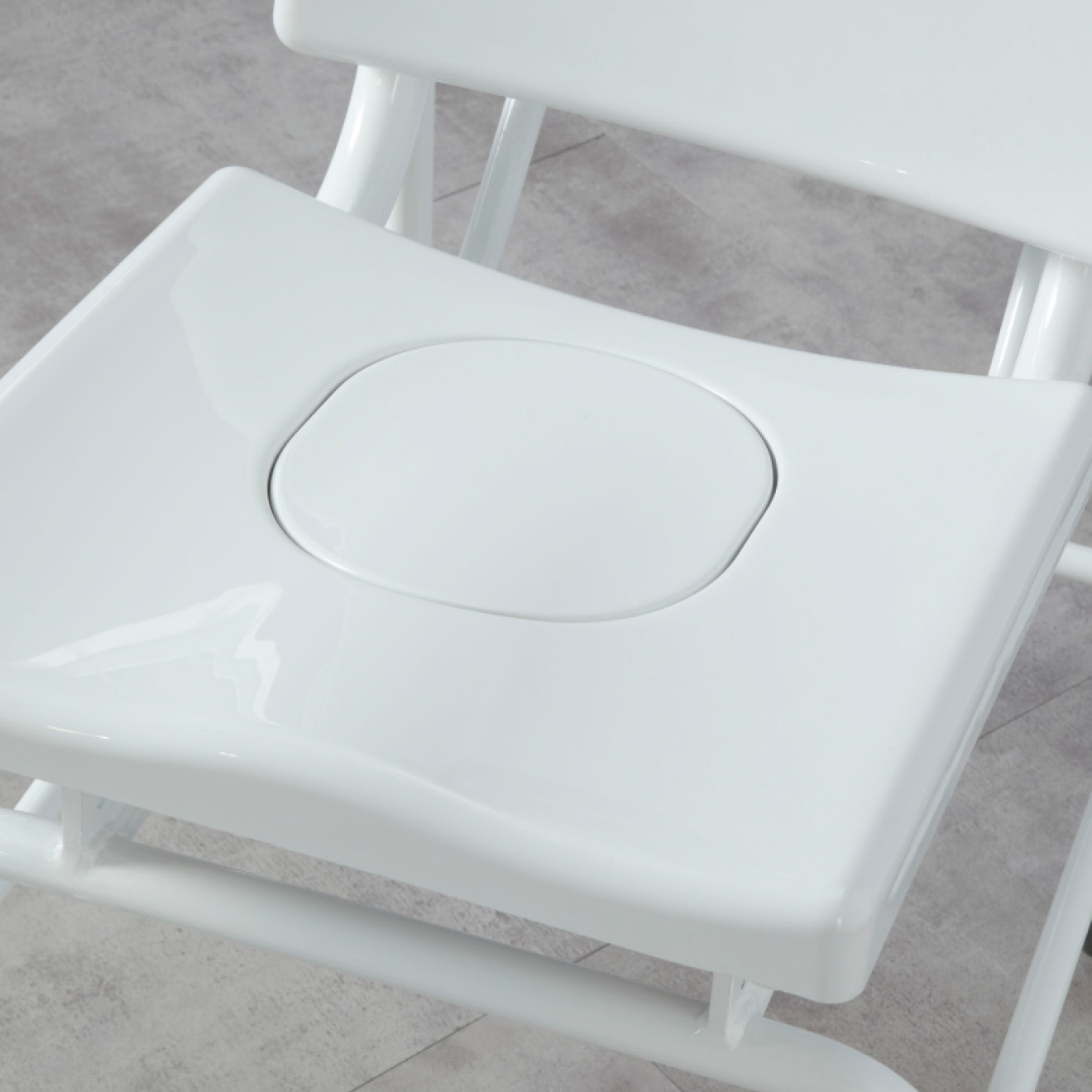

The seat has an insert that can be removed to allow more personal cleaning from underneath the seat.

Panel Options
Additional Side Panels – To suit a 1700mm or 1800mm long bath, either Full or Hoist Access.
End Panels – To suit a 750mm or 800mm wide bath and to be used in conjunction with one or two Side Panels.

Standard Specification
The standard bath is supplied with a Front Panel (Full or Hoist Access), straight arms on the seat, a removable insert in the seat and a detachable seat that lowers on to the Transporter.

Handing
It as available with a right-hand swing seat (pictured) or left-hand.

Sizes
1700mm x 750mm with an End Waste
1700mm x 750mm with a Centre Waste
1800mm x 800mm with an End Waste

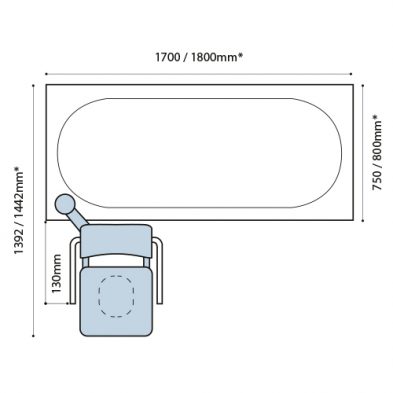

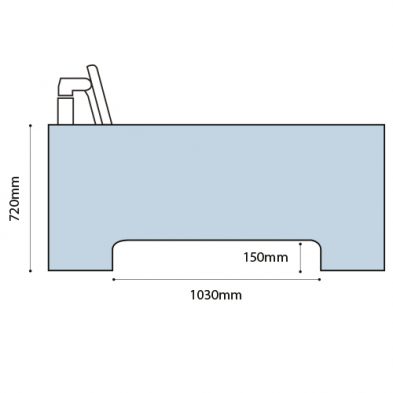

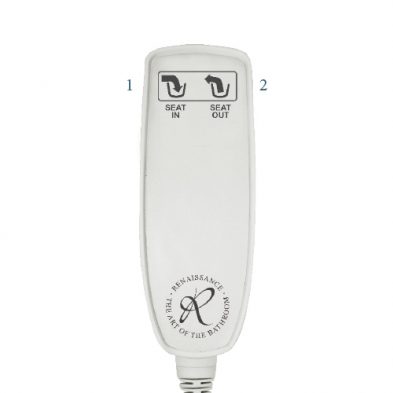

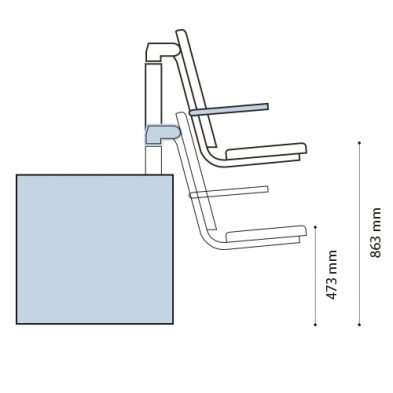

Dimensions and Handset
Brassware Options
Other Options
Downloads

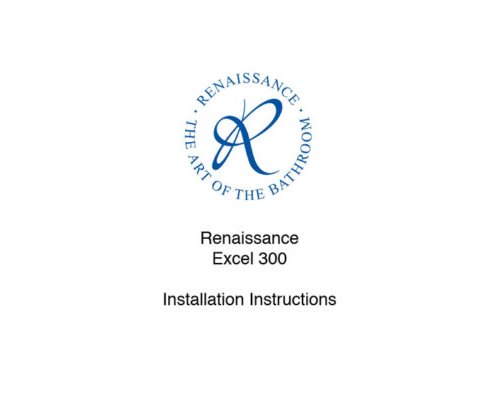

Excel 300 Installation Instructions
File Size 2.99 MB
Downloads 4590
Assisted Bathing Brochure
File Size 1.71 MB
Downloads 33015
